How to Load Packing Tape Dispenser: A Quick Guide

You're halfway through packing, the boxes are open, and the tape gun starts fighting back. The tape sticks to the wrong part, bunches near the roller, or tears badly when you try to seal a flap. The dispenser is often assumed to be cheap or faulty. Usually, it's just loaded the wrong way.

That's why learning how to load packing tape dispenser properly matters more than it looks. A handheld dispenser is a simple tool, but it only works well when the roll orientation, feed path, and tension all line up. Get those three things right and sealing boxes becomes quick, clean, and repeatable. Get them wrong and every box takes longer than it should.

Why Mastering Your Tape Dispenser Matters

A tape dispenser seems basic until it starts slowing the whole job down. In a house move, that usually happens when you're tired and trying to close boxes quickly. In a packing area, it happens when someone reloads the dispenser in a rush and hands the problem to the next person.

The reason this matters goes beyond convenience. Manual tape dispensers are still standard kit in everyday packing work. The tape dispenser market forecast from Towards Packaging projects the global market will grow from USD 5.65 billion in 2025 to USD 8.72 billion by 2035, with a 4.43% CAGR, and notes that the manual tape dispenser segment held the dominant revenue share in 2024. That fits what most removals crews and self-movers already know. For day-to-day sealing, the handheld dispenser still does the heavy lifting.

Small loading mistakes create bigger packing problems

A badly loaded dispenser doesn't just feel awkward. It wastes tape, leaves untidy seals, and breaks your rhythm. If you're packing for storage or a move, that rhythm matters. You want one box built, filled, sealed, labelled, and moved aside without stopping to fix the tool every few minutes.

Practical rule: If the tape gun feels awkward, don't force it. Check the loading before you blame the tape.

There's also a knock-on effect on box security. When tape feeds unevenly, people tend to compensate by adding extra strips, pressing harder, or tearing pieces by hand. That works in the moment, but it's slower and messier, and the seal is often worse.

The real skill is knowing why it fails

Most quick guides give you a diagram and stop there. That's fine if your dispenser matches the picture exactly. It's less useful when you're holding a different model with a slightly different roller or gate.

What helps is understanding the logic. The tape must unwind in the correct direction, travel through the right path, and feed with the right resistance. Once you understand that, you can load almost any manual dispenser without guesswork.

Understanding Your Dispenser and Tape

Before you load anything, take a second to identify the parts. Most handheld packing tape dispensers follow the same layout even if the shape changes a bit from brand to brand.

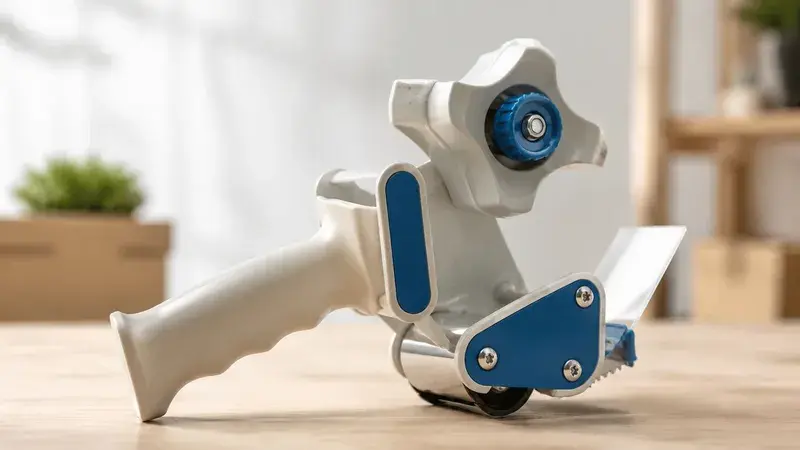

A standard pistol-grip dispenser has a handle, a spool or wheel that holds the tape roll, a roller that presses tape onto the box, a metal gate or guide, and a serrated blade for cutting. The part new packers ignore most often is the centre tension knob. That little control decides whether the roll unwinds neatly or turns into a nest of loose tape.

If you're pairing the tool with the right consumables, make sure the tape roll fits the dispenser correctly and use a proper packing tape range designed for moving and shipping. A mismatch between dispenser and tape core creates trouble before you even start threading it.

What each part actually does

The spool holds the roll in place, but it also works with the tension setting to control drag. The roller presses the adhesive down onto the carton surface. The metal gate keeps the tape travelling in a controlled path. The blade cuts the tape cleanly once the strip is laid down.

That means each part has a job, and each loading mistake interferes with a different one.

• Spool and centre knob: Control how freely the roll spins.
• Guide plate or gate: Keeps the tape aligned before it reaches the front.
• Roller: Helps the adhesive transfer to the box instead of wrapping around the dispenser.
• Blade: Finishes the strip cleanly so the next pull starts properly.

The orientation matters more than most people expect

The key thing to check is the sticky side. On a handheld dispenser, the adhesive should face down as the tape unwinds in working position. If the sticky side faces up, the tape meets the dispenser parts the wrong way and starts sticking where it shouldn't.

The dispenser isn't meant to fight the adhesive. It's designed to guide the backing while the sticky side stays ready for the box.

That's why people get stuck in a loop of pulling, peeling, and rethreading. The problem often isn't the threading itself. It's the roll facing the wrong way before threading even begins.

The Correct Way to Load a Handheld Dispenser

Loading a handheld tape gun is straightforward once you know the path. The important part is to do it in order and resist the urge to improvise.

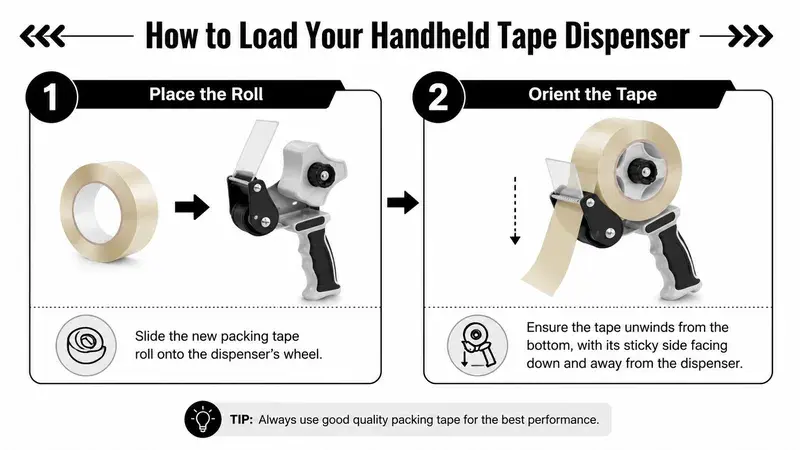

Start with the roll orientation

Place the roll onto the wheel so the tape will unwind with the adhesive side facing down when the dispenser is held in its natural working position. If the sticky side is facing up, remove the roll and flip it over.

That first check saves most of the frustration. According to Springpack's handheld tape dispenser loading guide, the correct sequence is to mount the roll with the adhesive side facing down, then feed about 4 to 6 inches of tape through the metal gate and under the roller before carrying it up to the cutting blade.

If you want a typical pistol-grip model for this kind of setup, a pistol grip tape dispenser follows this same basic loading logic.

Thread the tape through the front end

Pull out a short length of tape, roughly that 4 to 6 inch section. Feed it through the guide path at the front of the dispenser. On most handheld models, that means passing it through the metal gate and under the roller, then bringing it forward toward the blade.

Take your time here. If the tape twists, folds, or grabs at the side, pull it back and straighten it rather than forcing it through. The tape should lie flat against the path.

A clean threading path should look like this:

1. Roll mounted correctly with adhesive facing down.
2. Tape pulled forward from the underside of the roll.
3. Tape guided through the metal gate.
4. Tape passed under the roller.
5. Tape brought up to the blade with enough exposed end to start the next pull.

Set the end and test the feed

Once the tape reaches the front, leave the end just past the blade so you can start applying tape immediately. Then test the feed before touching a box.

Pull a short strip. Watch what the roll does. If it spins too freely and keeps turning after you stop, the tension is too loose. If it resists and jerks forward, the tension is too tight.

Workshop habit: Always test on a short pull first. It's faster to adjust tension now than to fight it on the first box seam.

The final tension check matters because a correctly loaded dispenser can still perform badly if the centre setting is wrong. Smooth feed should feel controlled, not floppy and not stiff. You want the tape to advance with light resistance and stop without overrunning.

A lot of people think loading ends once the tape reaches the blade. In practice, loading isn't finished until the test pull feels clean.

Adapting for Tabletop and Heavy-Duty Models

Not every dispenser is a pistol-grip hand tool. In offices, stockrooms, and dedicated packing benches, you'll also find tabletop and heavy-duty bench models.

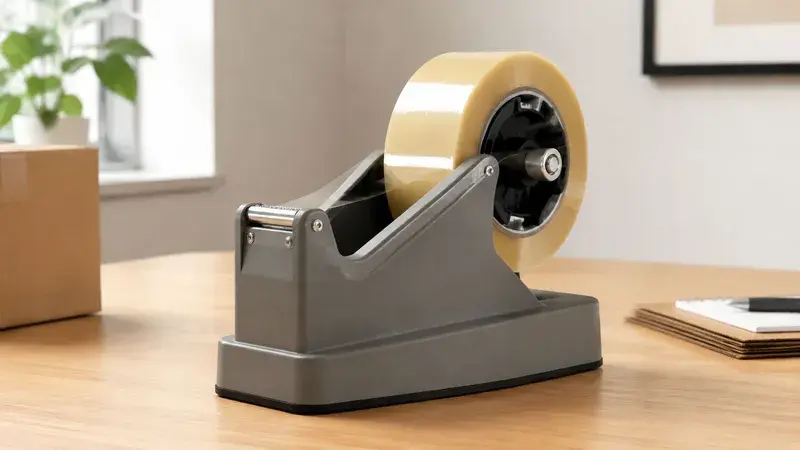

Tabletop models

A tabletop dispenser usually has a fixed base and a simpler tape path. You slide the roll onto the spindle, bring the tape over or around the guide point the model uses, and leave the end near the blade. Because the dispenser sits still and you pull the tape toward yourself, the visible orientation can look different from a handheld gun.

That's where people get confused. They try to copy the exact visual position from a pistol-grip dispenser instead of following the same principle. The rule is unchanged. The adhesive must end up in the right position for application, and the tape must travel through the intended path without grabbing the frame.

Heavy-duty packing station models

Heavy-duty models are built for larger rolls and repeated use. Some include extra guide rollers or a pressure plate. They can look more complicated, but the operating logic stays familiar.

Use this checklist when loading one:

• Follow the built-in path: Don't skip a guide roller because it seems unnecessary.
• Check roll direction first: Wrong orientation still causes the same sticking and feeding problems.
• Watch the first cut: A poor first cut often tells you the tape isn't sitting properly.
• Adjust before production starts: It's easier to tune one machine than correct a pile of badly sealed cartons.

If you use a bench setup regularly, a dedicated packing tape applicator can make sense because it's designed for repeated, faster application rather than occasional box sealing.

Different dispensers change the route, not the rule. Correct orientation, correct threading, controlled feed.

How to Fix Common Tape Dispenser Issues

Most loading problems come down to two faults: wrong unwind orientation and incorrect tension. The WikiHow loading guide explains it plainly. If the sticky side faces up, the tape adheres to the roller. If the tension is too loose, the roll free-spins. If it's too tight, the tape feeds in a jerky way.

That matches what happens on the packing bench. You can diagnose most faults in seconds if you stop and look at the symptom instead of yanking harder on the handle.

Tape Dispenser Troubleshooting Guide

The quickest way to recover

Don't strip the whole dispenser down every time something goes wrong. Start with the obvious checks.

• Look at the adhesive side: If it's facing the wrong way, nothing else will behave properly.
• Test a short pull: That tells you whether tension is the issue.
• Adjust in small turns: Big changes on the centre knob usually overshoot the fix.

One clean test strip tells you more than a minute of wrestling with the tool.

Simple Maintenance for a Reliable Tape Gun

A tape gun doesn't need much attention, but the small maintenance jobs matter. Adhesive residue builds up slowly on the blade and roller, and once that happens the dispenser stops cutting and feeding as cleanly as it should.

A few habits that keep it working

Clean the blade carefully when you see sticky build-up. A cotton bud with rubbing alcohol works well for dissolving residue. Keep your fingers away from the serrated edge, even when the dispenser looks harmless on the bench.

Check the roller too. If adhesive transfers onto it, the tape can drag, wrinkle, or hesitate before it reaches the carton. A quick wipe now is easier than dealing with snagging halfway through a move.

A reliable tape gun is usually a clean tape gun.

Store the dispenser somewhere dry, don't throw it loosely into a box of mixed tools, and replace it when the frame or blade becomes unreliable. For packing work, consistency saves more time than brute force ever will.
